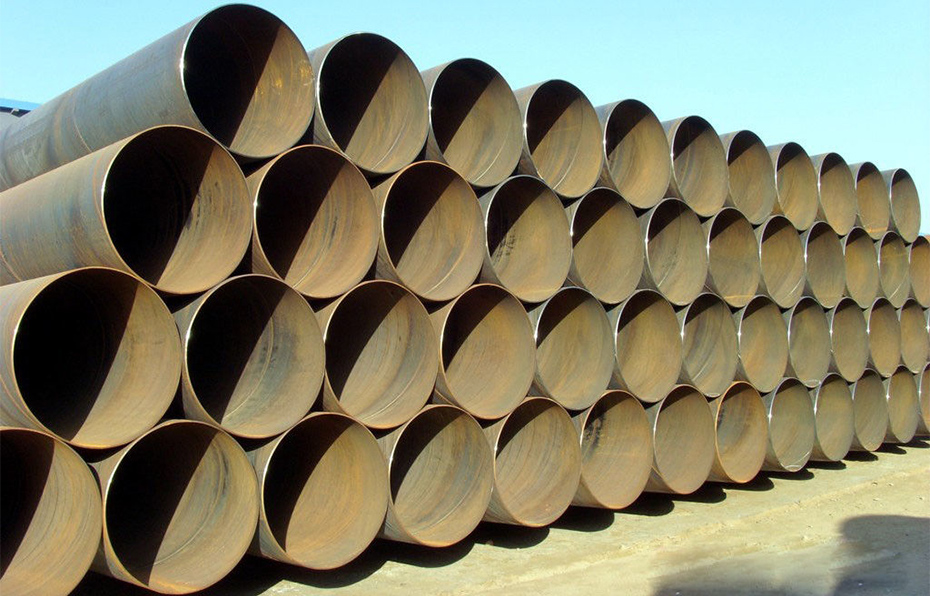

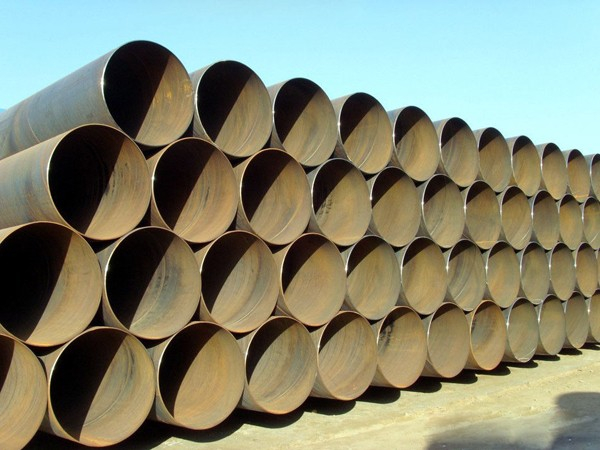

| O.D. | 219,1 - 3566 mm (8 - 140") |
| W.T. | 3 - 40 mm (0,118 - 1,575 |
| 长度 | 可达18米 |
| 焊接工艺 | 双面埋弧螺旋焊 |
| 管道末端和连接细节 | 平切端/斜角端，焊接连接，法兰连接，圆柱承插接头 |
| 国际标准 | EN10217-1, EN 10224, AWWA C200 |
| 材质 | EN 10217-1: P195TR1 - P265TR2 |
| EN 10224 | L235 - L355 |
| 表面状况 | 裸露或有涂层/内衬(水泥砂浆、无溶剂环氧树脂、环氧树脂、FBE、聚乙烯、聚丙烯等) |
| 强制性和选择性测试 | NDT(超声波测试、射线检测)、水压测试、机械和工艺测试等。另外，涂层和衬里的质量测试是根据应用和要求进行的 |
| 通径 |
O.D. (mm) |
厚度 (mm) |
理论重理 (kg/m) |
压力测检 (Mpa) | ||||||||
| L245 | L290 | L320 | L360 | L390 | L415 | L450 | L285 | L555 | ||||
| 20 | 508 | 6.4 | 79.17 | 3.7 | 6.6 | 7.3 | 8.2 | 8.8 | 9.4 | 10.2 | 11.0 | 12.6 |
| 508 | 7.1 | 87.71 | 4.1 | 7.3 | 8.1 | 9.1 | 9.8 | 10.4 | 11.3 | 12.2 | 14.0 | |
| 508 | 7.9 | 97.43 | 4.6 | 8.1 | 9.0 | 10.1 | 10.9 | 11.6 | 12.6 | 13.6 | 15.5 | |
| 508 | 8.7 | 107.13 | 5.0 | 8.9 | 9.9 | 11.1 | 12.0 | 12.8 | 13.9 | 15.0 | 17.1 | |
| 508 | 10.3 | 126.42 | 6.0 | 10.6 | 11.7 | 13.1 | 14.2 | 15.1 | 16.4 | 17.7 | 20.3 | |
| 22 | 559 | 7.1 | 96.64 | 3.7 | 6.6 | 7.3 | 8.2 | 8.9 | 9.5 | 10.3 | 11.1 | 12.7 |
| 559 | 7.9 | 107.37 | 4.2 | 7.4 | 8.1 | 9.2 | 9.9 | 10.6 | 11.4 | 12.3 | 14.1 | |
| 559 | 8.7 | 118.07 | 4.6 | 8.1 | 9.0 | 10.1 | 10.9 | 11.6 | 12.6 | 13.6 | 15.5 | |
| 559 | 10.3 | 139.38 | 5.4 | 9.6 | 10.6 | 11.9 | 12.9 | 13.8 | 14.9 | 16.1 | 18.4 | |
| 24 | 610 | 7.1 | 105.57 | 3.5 | 6.1 | 6.7 | 7.5 | 8.2 | 8.7 | 9.4 | 10.2 | 11.6 |
| 610 | 7.9 | 117.30 | 3.8 | 6.8 | 7.5 | 8.4 | 9.1 | 9.7 | 10.5 | 11.3 | 12.9 | |
| 610 | 8.7 | 129.01 | 4.2 | 7.4 | 8.2 | 9.2 | 10.0 | 10.7 | 11.6 | 12.5 | 14.2 | |
| 610 | 10.3 | 152.33 | 4.9 | 8.8 | 9.8 | 11.0 | 11.9 | 12.6 | 13.7 | 14.8 | 16.9 | |
| 26 | 660 | 7.1 | 114.32 | 3.2 | 5.6 | 6.2 | 7.0 | 7.6 | 8.0 | 8.7 | 9.4 | 10.7 |
| 660 | 7.9 | 127.05 | 3.5 | 6.2 | 6.9 | 7.8 | 8.4 | 8.9 | 9.7 | 10.4 | 12.0 | |
| 660 | 8.7 | 139.74 | 3.90 | 6.9 | 7.6 | 8.5 | 9.3 | 9.8 | 10.7 | 11.5 | 13.2 | |
| 660 | 10.3 | 165.03 | 4.6 | 8.1 | 9.0 | 10.1 | 11.0 | 11.7 | 12.6 | 13.6 | 15.6 | |
| 28 | 711 | 7.9 | 136.98 | 3.3 | 5.8 | 6.4 | 7.2 | 7.8 | 8.3 | 9.0 | 9.7 | 11.1 |
| 711 | 8.7 | 150.68 | 3.6 | 6.4 | 7.0 | 7.9 | 8.6 | 9.1 | 9.9 | 10.7 | 12.2 | |
| 711 | 9.5 | 164.35 | 3.9 | 7.0 | 7.7 | 8.7 | 9.4 | 10.0 | 10.8 | 11.7 | 13.3 | |
| 711 | 10.3 | 177.99 | 4.3 | 7.6 | 8.3 | 9.4 | 10.2 | 10.8 | 11.7 | 12.6 | 14.5 | |
| 30 | 762 | 7.9 | 146.92 | 3.0 | 5.4 | 6.0 | 6.7 | 7.3 | 7.7 | 8.4 | 9.1 | 11.1 |
| 762 | 8.7 | 161.62 | 3.4 | 6.0 | 6.6 | 7.4 | 8.0 | 8.5 | 9.2 | 10.0 | 11.4 | |
| 762 | 9.5 | 176.30 | 3.7 | 6.5 | 7.2 | 8.1 | 8.8 | 9.3 | 10.1 | 10.9 | 12.5 | |
| 762 | 10.3 | 190.94 | 4.0 | 7.1 | 7.8 | 8.8 | 9.5 | 10.1 | 10.9 | 11.8 | 13.5 | |
| 32 | 813 | 7.9 | 156.85 | 2.9 | 5.1 | 5.6 | 6.3 | 6.8 | 7.3 | 7.9 | 8.5 | 9.7 |
| 813 | 8.7 | 172.57 | 3.1 | 5.6 | 6.2 | 6.9 | 7.5 | 8.0 | 8.7 | 9.3 | 10.7 | |
| 813 | 10.3 | 203.90 | 3.7 | 6.6 | 7.3 | 8.2 | 8.9 | 9.5 | 10.3 | 11.1 | 12.7 | |
| 813 | 12.7 | 250.65 | 4.6 | 8.2 | 9.0 | 10.1 | 11.0 | 11.7 | 12.7 | 13.6 | 15.6 | |
| 36 | 914 | 8.7 | 194.24 | 2.8 | 5.0 | 5.5 | 6.2 | 6.7 | 7.1 | 7.7 | 8.3 | 9.5 |
| 914 | 9.5 | 211.91 | 3.1 | 5.4 | 6.0 | 6.7 | 7.3 | 7.8 | 8.4 | 9.1 | 10.7 | |
| 914 | 10.3 | 229.55 | 3.3 | 5.9 | 6.5 | 7.3 | 7.9 | 8.4 | 9.1 | 9.8 | 11.3 | |
| 914 | 12.7 | 282.29 | 4.1 | 7.3 | 8.0 | 9.0 | 9.8 | 10.4 | 11.3 | 12.1 | 13.9 | |
| 40 | 1016 | 9.5 | 235.81 | 2.7 | 4.9 | 5.4 | 6.1 | 6.6 | 7.0 | 7.6 | 8.2 | 9.3 |
| 1016 | 12.7 | 314.23 | 3.7 | 6.5 | 7.2 | 8.1 | 8.8 | 9.3 | 10.1 | 10.9 | 12.5 | |
| 1016 | 14.3 | 353.26 | 4.1 | 7.3 | 8.1 | 9.1 | 9.9 | 10.5 | 11.4 | 12.3 | 14.1 | |
| 1016 | 17.5 | 430.90 | 5.0 | 9.0 | 9.8 | 11.1 | 12.0 | 12.8 | 13.9 | 15.0 | 17.1 | |
| 44 | 1118 | 9.5 | 259.70 | 2.5 | 4.4 | 4.9 | 5.5 | 6.0 | 6.3 | 6.9 | 7.4 | 8.5 |
| 1118 | 10.3 | 281.37 | 2.7 | 4.8 | 5.3 | 6.0 | 6.5 | 6.9 | 7.5 | 8.0 | 9.2 | |
| 1118 | 12.7 | 346.18 | 3.3 | 5.9 | 6.5 | 7.4 | 8.0 | 8.5 | 9.2 | 9.9 | 11.3 | |
| 1118 | 14.3 | 389.23 | 3.8 | 6.7 | 7.4 | 8.3 | 9.0 | 9.6 | 10.4 | 11.2 | 12.8 | |
| 1118 | 20.6 | 557.47 | 5.3 | 9.6 | 10.5 | 11.9 | 12.8 | 13.7 | 14.9 | 16.0 | 18.3 | |
| 48 | 1219 | 10.3 | 307.03 | 2.5 | 4.4 | 4.9 | 5.5 | 5.9 | 6.3 | 6.8 | 7.4 | 8.4 |
| 1219 | 12.7 | 377.81 | 3.1 | 5.4 | 6.0 | 6.8 | 7.3 | 7.8 | 8.4 | 9.1 | 10.4 | |
| 1219 | 14.3 | 424.85 | 3.4 | 6.1 | 6.8 | 7.6 | 8.2 | 8.8 | 9.5 | 10.2 | 11.7 | |
| 1219 | 20.6 | 608.75 | 4.8 | 8.8 | 9.6 | 10.9 | 11.7 | 12.6 | 13.6 | 14.7 | 16.8 | |
| 52 | 1321 | 10.3 | 332.94 | 2.3 | 4.1 | 4.5 | 5.1 | 5.5 | 5.8 | 6.3 | 6.8 | 7.8 |
| 1321 | 12.7 | 409.76 | 2.8 | 5.0 | 5.5 | 6.2 | 6.7 | 7.2 | 7.8 | 8.4 | 9.6 | |
| 1321 | 14.3 | 460.82 | 3.2 | 5.7 | 6.2 | 7.0 | 7.6 | 8.1 | 8.8 | 9.5 | 10.8 | |
| 1321 | 22.2 | 711.30 | 4.9 | 8.8 | 9.6 | 10.9 | 11.7 | 12.5 | 13.6 | 14.6 | 16.7 | |
| 56 | 1422 | 10.3 | 358.59 441.39 496.44 | 2.1 | 3.8 | 4.2 | 4.7 | 5.1 | 5.4 | 5.9 | 6.3 | 7.2 |
| 1422 | 12.7 | 2.6 | 4.7 | 5.1 | 5.8 | 6.3 | 6.7 | 7.2 | 7.8 | 8.9 | ||
| 1422 | 14.3 | 3.0 | 5.2 | 5.8 | 6.5 | 7.1 | 7.5 | 8.1 | 8.8 | 10.0 | ||
| 1422 | 22.2 | 4.5 | 8.1 | 8.9 | 10.1 | 10.8 | 11.6 | 12.6 | 13.6 | 15.5 | ||
| 60 | 1524 | 12.7 | 473.31 | 2.4 | 4.4 | 4.8 | 5.4 | 5.8 | 6.2 | 6.7 | 7.2 | 8.3 |
| 1524 | 15.9 | 591.32 | 3.0 | 5.4 | 6.0 | 6.7 | 7.2 | 7.8 | 8.4 | 9.1 | 10.4 | |
| 1524 | 17.5 | 650.13 | 3.3 | 6.0 | 6.6 | 7.7 | 8.0 | 8.6 | 9.3 | 10.0 | 11.4 | |
| 1524 | 22.2 | 822.16 | 4.2 | 7.6 | 8.3 | 9.4 | 10.1 | 10.7 | 11.7 | 12.7 | 14.5 | |
| 64 | 1626 | 12.7 | 505.26 | 2.3 | 4.1 | 4.5 | 5.0 | 5.4 | 5.8 | 6.3 | 6.8 | 7.8 |
| 1626 | 15.9 | 603.31 | 2.8 | 5.1 | 5.6 | 6.3 | 6.8 | 7.3 | 7.9 | 8.5 | 9.7 | |
| 1626 | 17.5 | 694.15 | 3.1 | 5.6 | 6.1 | 7.0 | 7.5 | 8.0 | 8.7 | 9.4 | 10.7 | |
| 1626 | 22.2 | 878.0 | 3.9 | 7.1 | 7.8 | 8.0 | 9.5 | 10.2 | 11.0 | 11.9 | 13.6 | |
● 厂房占地7000㎡，现有员工200余名，自主研发能力，提供ODM订制。
● 30余条定制生产线，专机专用1分钟10米，年产管道达20000吨以上。
● 成功为国内外多家企业提供管材供应，近百个大企业长期指定服务商！
● 引入精细化管理的厂家，产品通过SGS认证，ISO9001:2008质量认证。
● 标准化试验室，配备全套的管材检测设备，确保质量达标。
● 获得用户满意工程、用户满意产品、质量优胜奖等多项荣誉。
● 售前：技术团队现场勘察，深入沟通，针对性提供合理性解决方案。
● 售中：全程施工指导，细致施工培训，实时现场监察始终在第一现场。
● 售后：与多家物流建立深度合作关系，2-5天快速发货，无锡当天发货。
